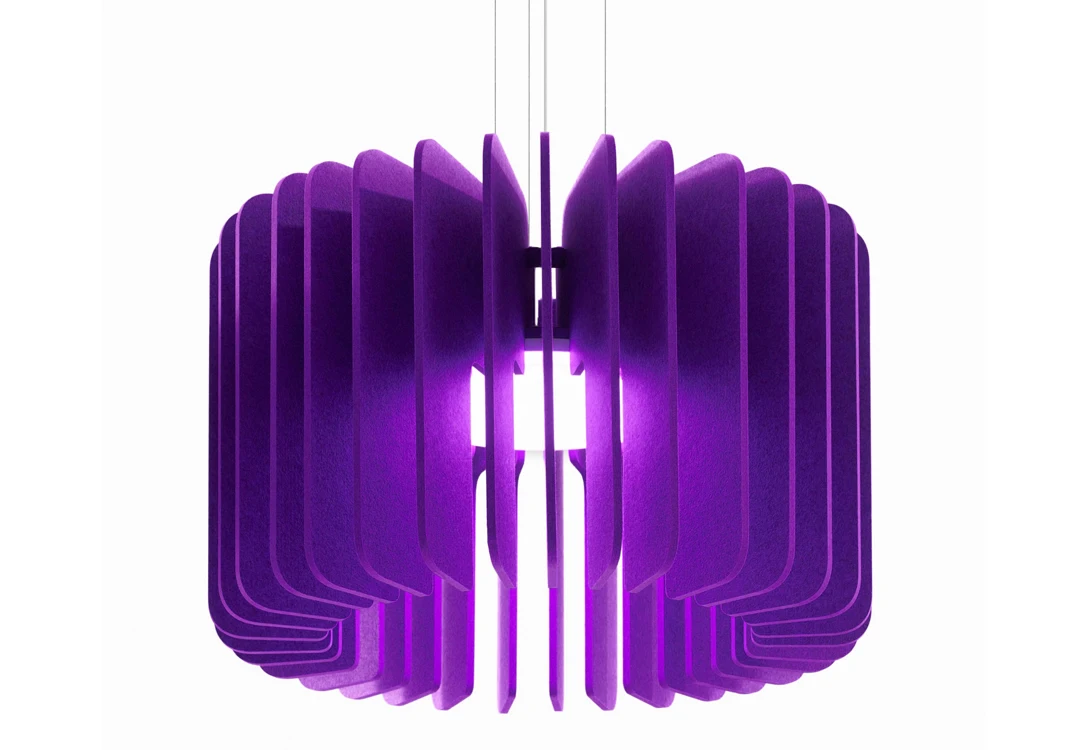

Acoustic LED Pendant Light
Products Description
Input Voltage
: AC100-277V / AC220-240V,50-60HZ
Material
: 6063 Aluminium Profile + LENS + Felt Acoustic Board

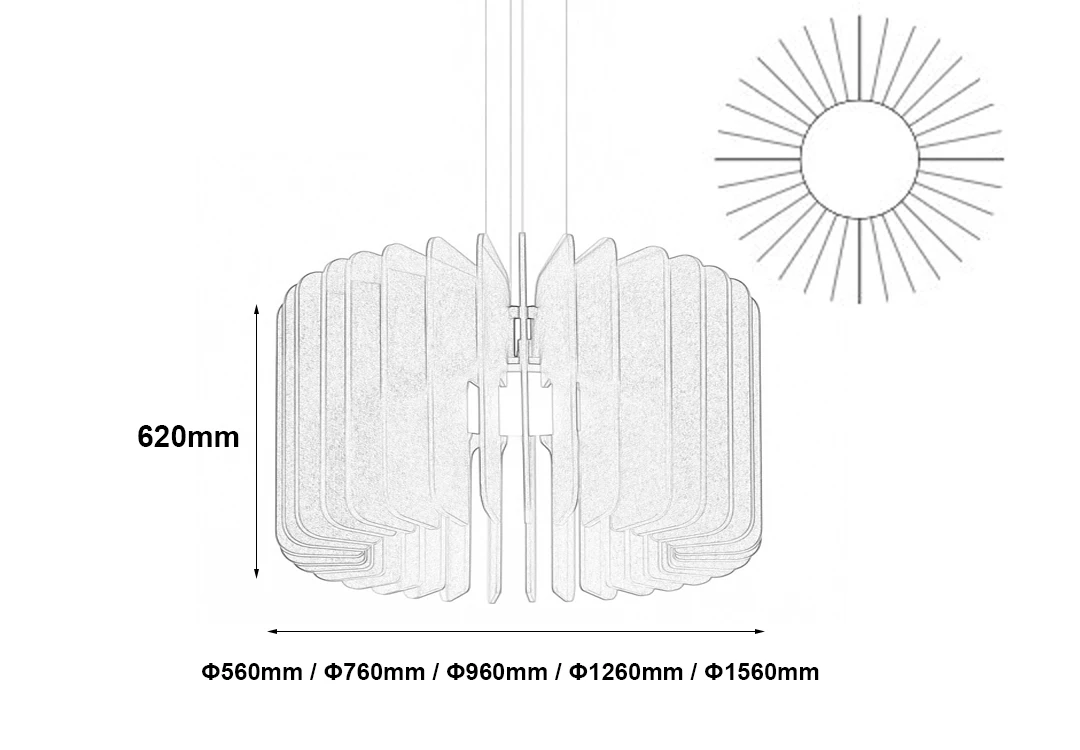

Diameter Option
: Φ560mm / Φ760mm / Φ960mm / Φ1260mm / Φ1560mm
Height
: 620mm
LED Chip
: SMD2835
Driver Brand
: BOKE / LIFUD
CCT
: 3000K / 4000K / 6000K
Luminous Flux
: 100-110Lm/W
CRI
: >90Ra
PF
: >0.90
Fllicker Free
: Yes
Beam Angle
: 120°
Function Option

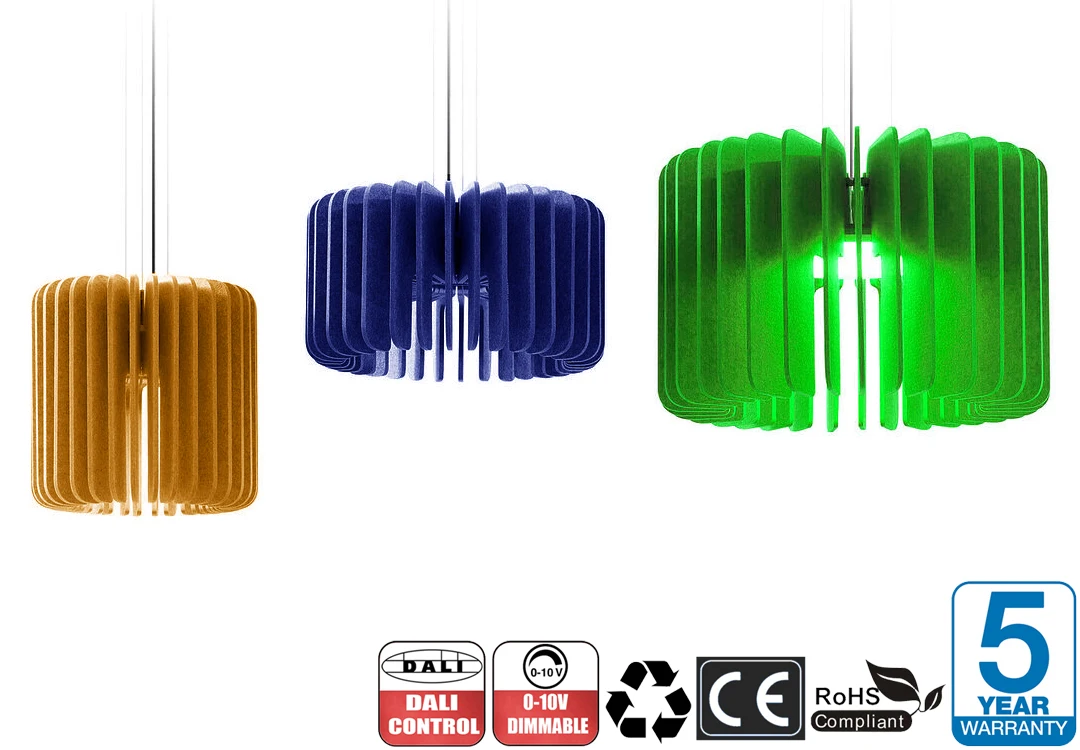

: ON&OFF / 0-10V Dimming / DALI Dimming
Installation Option
: Suspension Mount
Felt Acoustic Board Color
: Red / Green / Blue / Grey more than 48 colors option
IP Grade
: IP20
Warranty
: 5 years
Model
Watt
Lumens
Color Temperature
Product Size
EN-XYST-560
24W
2000Lm
3000K / 4000K / 6000K
Φ560*H620mm
EN-XYST-760
24W
3000Lm
3000K / 4000K / 6000K
Φ760*H620mm
EN-XYST-960
36W
3500Lm
3000K / 4000K / 6000K
Φ960*H620mm
EN-XYST-1260
42W
4000Lm
3000K / 4000K / 6000K
Φ1260*H620mm
EN-XYST-1560
48W
5000Lm
3000K / 4000K / 6000K
Φ1560*H620mm

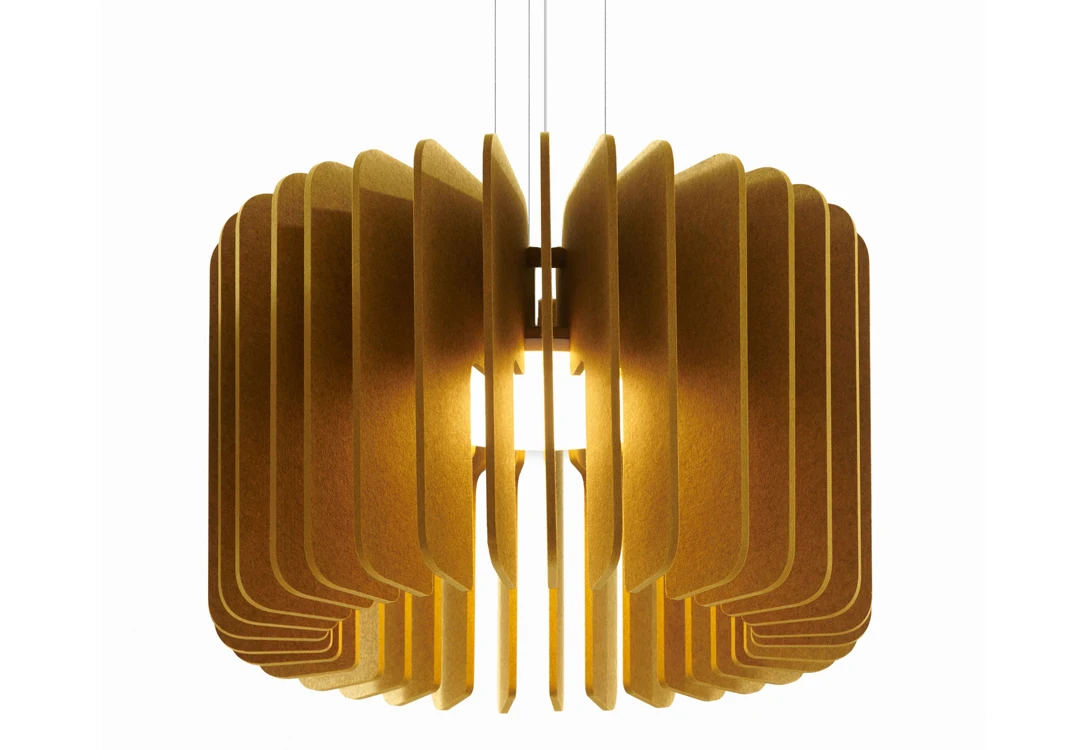

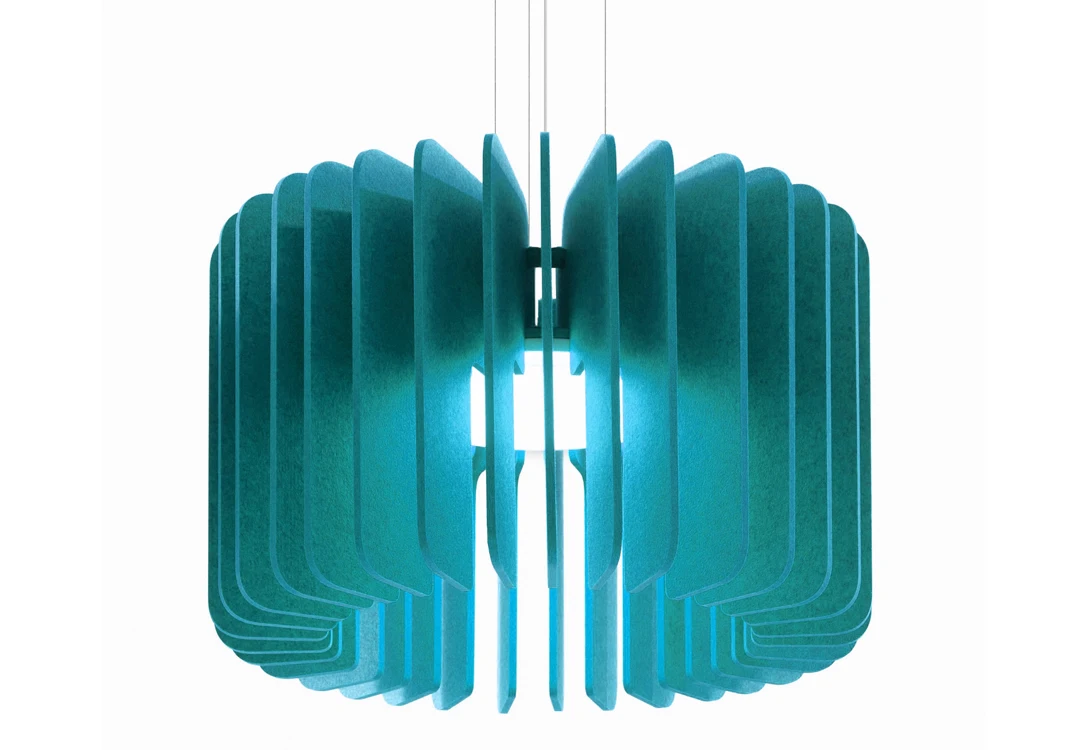

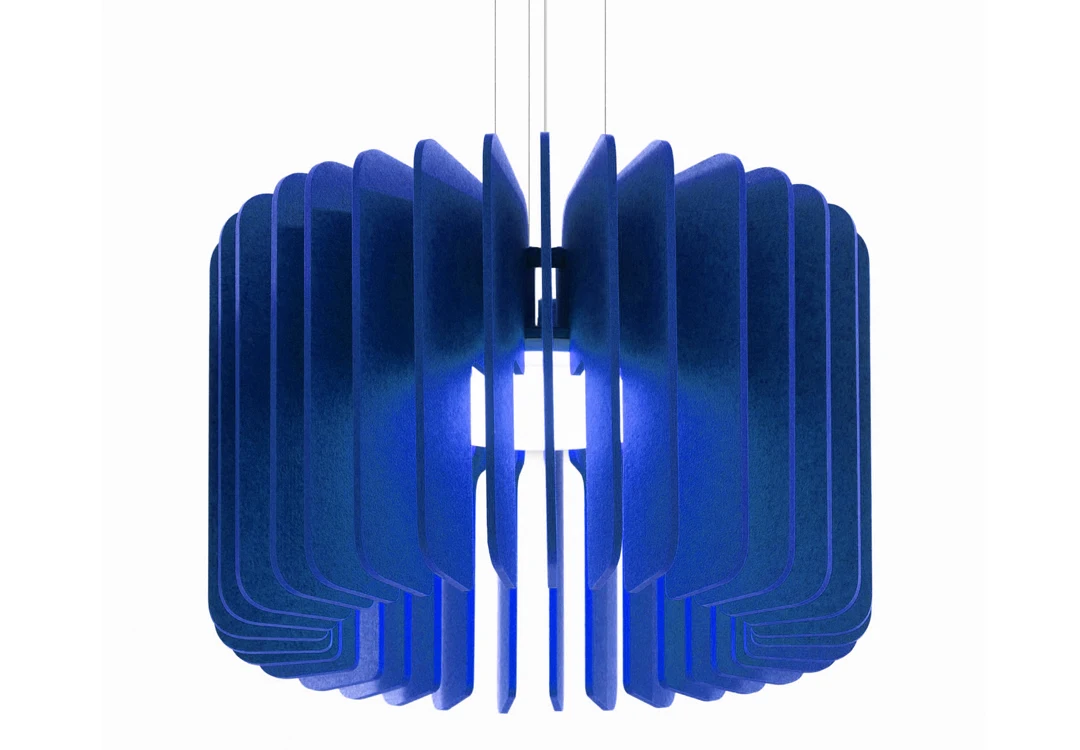

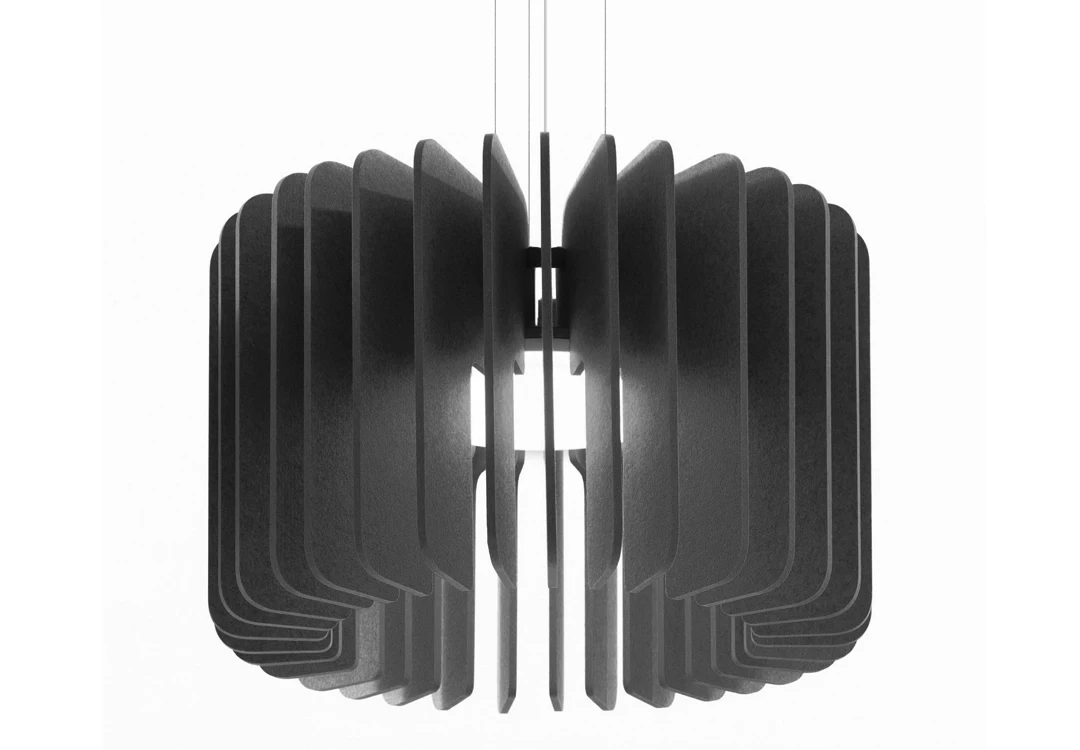

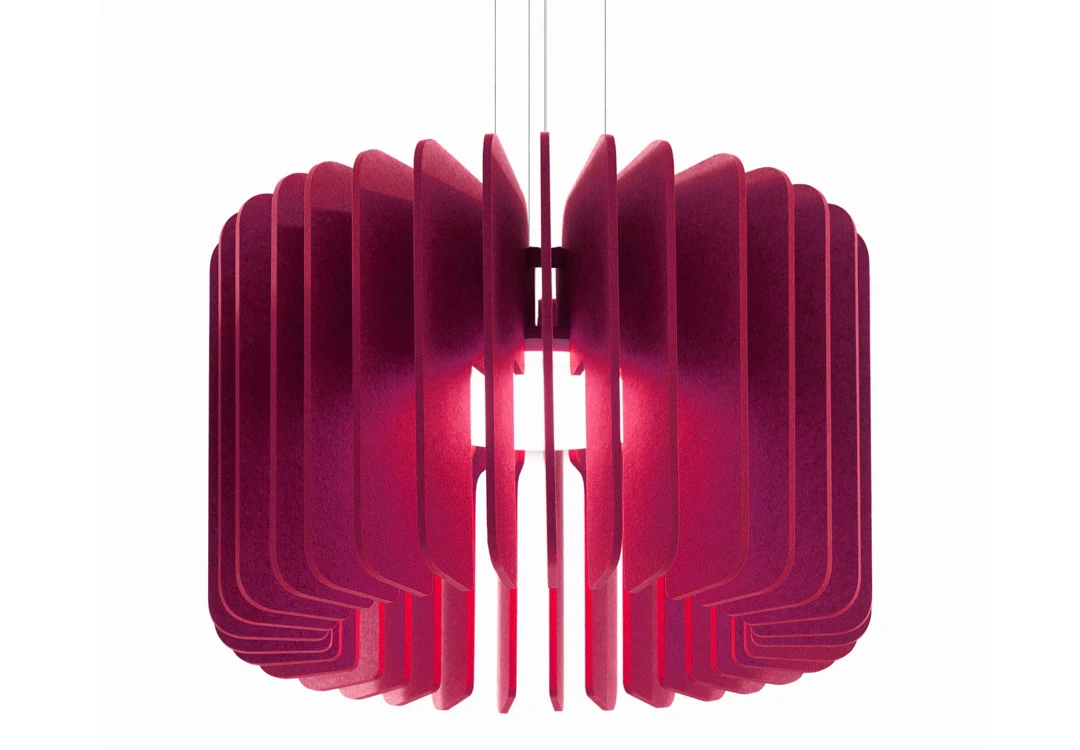

Acoustic Board Color Option

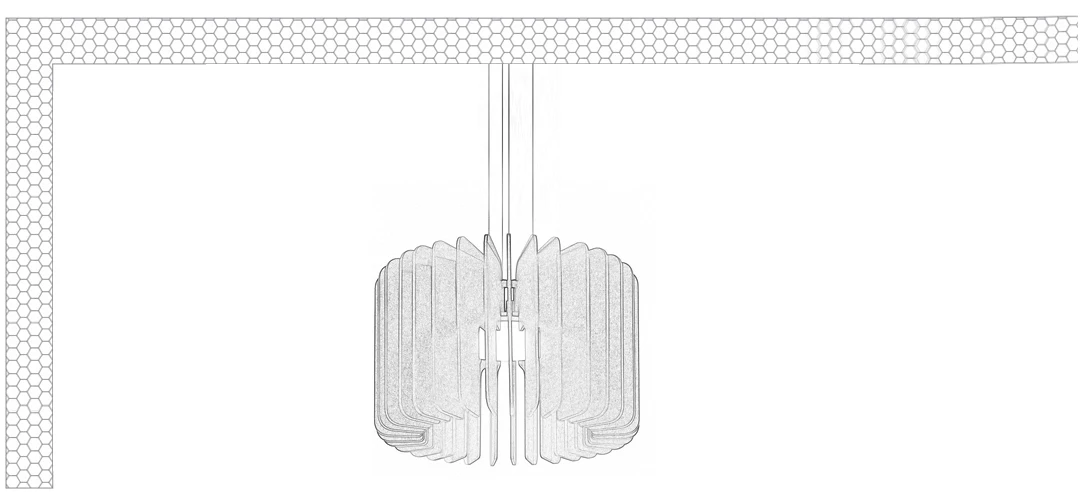

Installation Instructions
Perfect Sound Absorption
Reach to NRC = 0.7 as high sound absorption performance Noise Reduction Coefficient (NRC) is an average rating of how much sound an acoustic parts can absorb. It’s like a sponge absorbs water, an acoustic lighting absorbs sound. NRC rating range from 0 to 1.It’s important to note that the effectiveness of acoustic lighting depends on the lighting size and the space scale, also how the lighting is installed. All of our acoustic lighting receive high NRC ratings, making them the perfect choice for bringing quietness to your space.
What is Acoustics?
Acoustic products are made from 100% polyethylene terephthalate(PET), with 50% post-consumer recycled material. PET is a green product manufactured free of added chemicals, binders, adhesives and dyes. The product is very adaptable, it can be cut, notched or trimmed for installation purpose.Nearly every environment interacts with sound, PETcan achieve a triple purpose-functionally acoustic in nature, enhanced design of any space and environmental consciousness.
Acoustic Lighting Features
* High Sound Absorption Performance in NRC = 0.7. * Excellent illumination performance. * 100% recyclable and odorless material. * Class A/HB Fire retardant. * Various customized design in 4x8ft / 1.22x2.44m acoustic panels.

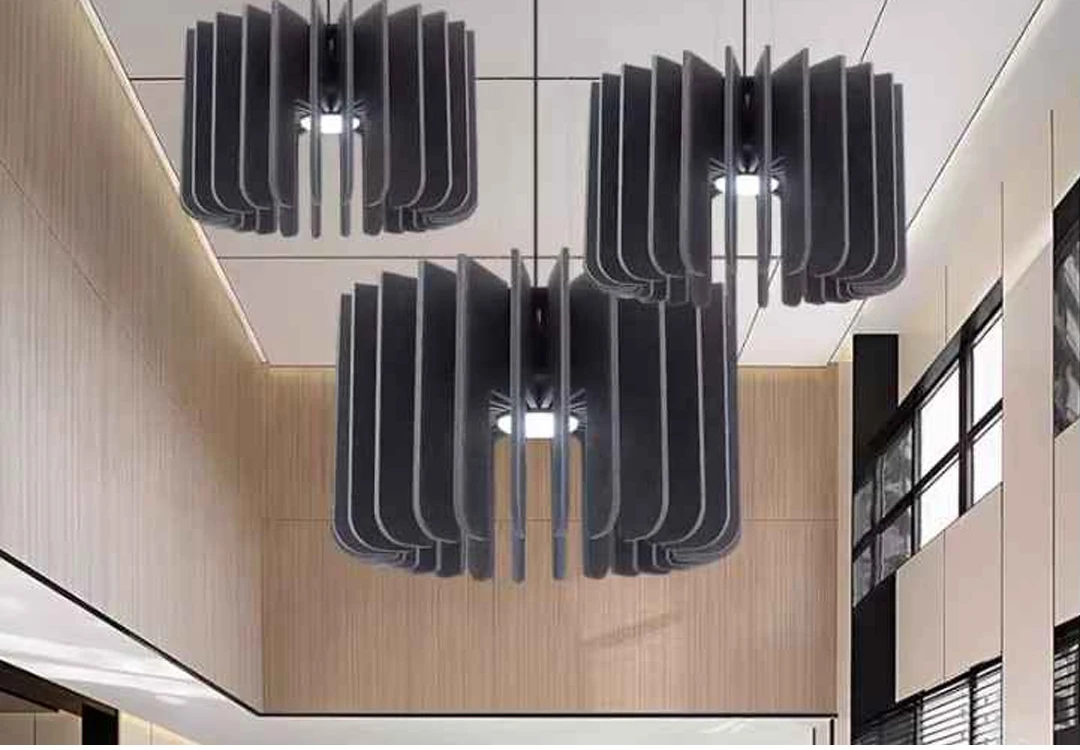

Application
* Hospital,Gym,Theater,Cinema,Exhibition Hall,Museum,Video Game Room. * Hotel,Restaurant,Supermarket,Station,Airport,Cafe Shop,Bar,Club. * Living Room,Bedroom,Conference Room,Office,Corridor,Loby,etc.
